Abel

BS 3442-2 (obs.)
EN 924
ISO 1516 - ISO 1523 - ISO 13736
IP 113 (obs.) - IP 170 (obs.) - IP 304-1 (obs.) - IP 304-2 (obs.) - IP 491 - IP 492
NF M07-011 (obs.) - NF T66-009 (obs.)

Flash Point by Abel Closed Cup Method
Determines the closed cup flash point of petroleum products and other liquids having flash points between -30°C and 71°C.

---

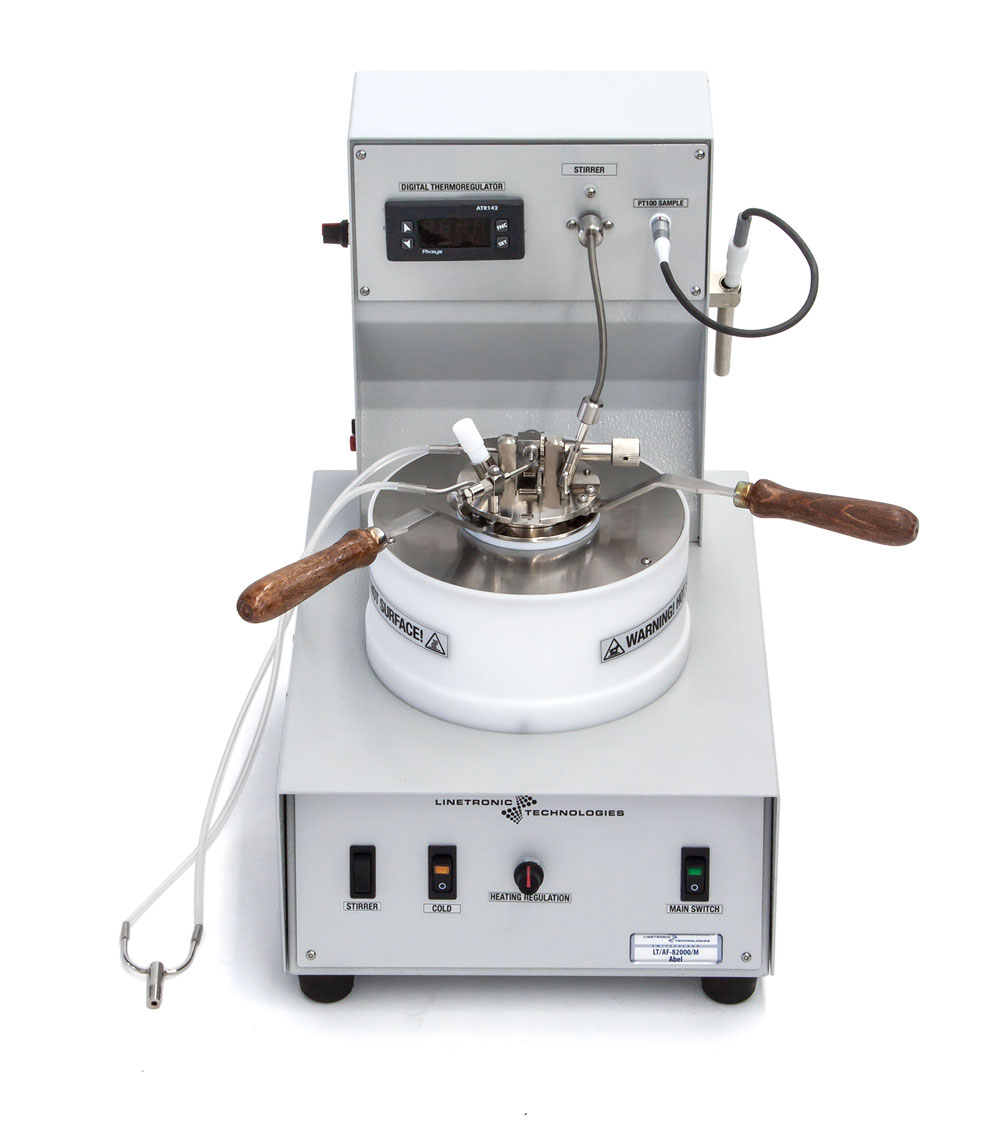

LT/AF-82000/M

Electric Abel Flash Point,
manual instrument composed by:

• Metallic case structure painted with anti-acid products
• Digital display for temperature reading with 0,1°C resolution
• Temperature read by a stainless steel PT100 A class with stand-by protection support
• Stirrer motor with flexible junction and on/off switch
• Calibrated brass crucible with level line, handle and stand-by support
• Cover with gas ignition device allowing to ignite the testing sample by a manual glide-opening
• Electrical ignitor/enlighter with intensity regulation knob
• Stainless steel bath with internal cooling coil and joints for external cooling source
• Internal solenoid valve for manage cooling through a power switch
• Stainless steel heating element with power heating regulation knob

Power Supply

• 220 or 115 Vac 50/60 Hz

Dimensions

• cm 40 × 50 × 50

Weight

• kg 10

---

LT/AF-82200/DC

Electric Abel Flash Point,
semi-automatic instrument composed by:

• Metallic case structure painted with anti-acid products
• Digital display for temperature reading with 0,1°C resolution
• Temperature read by a stainless steel PT100 A class with stand-by protection support
• Stirrer motor with flexible junction and on/off switch
• Calibrated brass crucible with level line, handle and stand-by support
• Cover with gas ignition device allowing to ignite the testing sample by pushing a button
• Electrical ignitor/enlighter with intensity regulation knob
• Stainless steel bath with internal cooling coil and joints for external cooling source
• Internal solenoid valve for manage cooling through a power switch
• Stainless steel heating element with power heating regulation knob

Power Supply

• 220 or 115 Vac 50/60 Hz

Dimensions

• cm 45 × 50 × 60

Weight

• kg 12

---

Accessories for all articles

• LAB-100-749: gas reducer 30 mbar
• LAB-100-750: rubber tube-joint and tube 5 m
• T-IP74C: thermometer IP 74C
• T-IP75C: thermometer IP 75C

Spare parts for LT/AF-82000/M

• LAB-100-752: thermometer collar, pack of 5 pcs.
• LAB-100-771: calibrated brass crucible
• LAB-100-772: complete movement
• LAB-100-753: flexible stirrer drive, pack of 5 pcs.
• LAB-110-003: heater
• LAB-150-110: electronic regulator

Accessories for LT/AF-82200/DC

• LAB-150-110: electronic regulator
• LAB-160-019: digital display for sample temperature display
• LAB-650/05-13: heater
• LAB-650/07-01: electrical ignitor for test flame lighting
• LAB-650/08-12: PT100 for sample temperature
• LAB-650/09-05: calibrated brass crucible
• LAB-650/09-07: cover cup movement only
• LAB-650/11-02: stirrer / flexible
• LAB-650/20-01: support PT100 Teflon®

---
