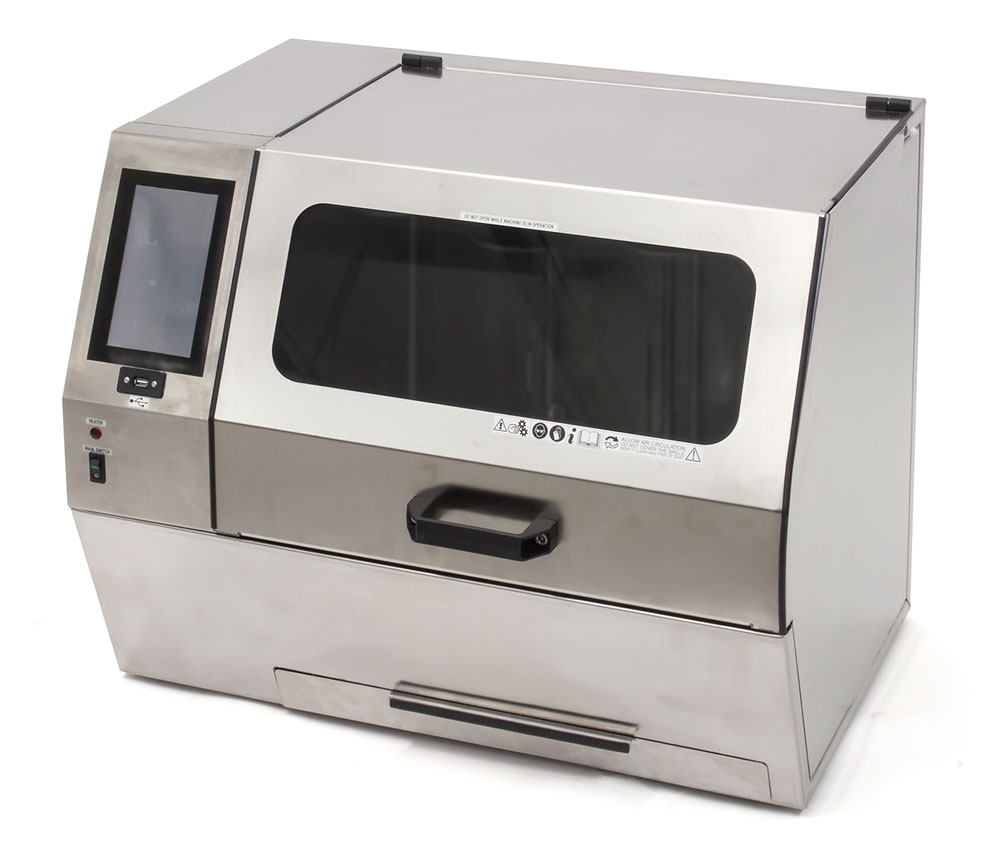

Viscometer Tube Cleaner and Dryer
Heated capillary viscometers tube cleaner and dryer, 6 places.
Instrument composed by:
- Bench top single chassis instrument completely realized in stainless steel.
- Integrated touch screen panel pc managed by Linetronic Software running on Windows® basis able to:
- running multiple cleaning cycles;
- programming the solvent/air heating temperature;
- settable timer for solvent and air action;
- estimation of the remaining solvent;
- automatic diagnostic and errors display;
- software settable air/solvent action.
- Solvent tank made in stainless steel with 2 litres capacity removable with fast connections.
- Large front door equipped with tempered glass inspection window, gull-wing vertical opening for easily access to the washing chamber.
- Washing chamber with 6 (six) independent positions with manual operating valve, recovery disk and holding-down spring system.
- Air connection system composed by pressure regulator and integrated air level monitoring system.
- Need to be connected to external air-pressure line.
- Removable stainless steel recovery tank equipped with rear drain tap for used solvent
- LAB-48100-17007: static relay 40 A
- LAB-48100-17161: heating element 800 W
- LAB-48100-5274: silicon adapter for capillary tube
